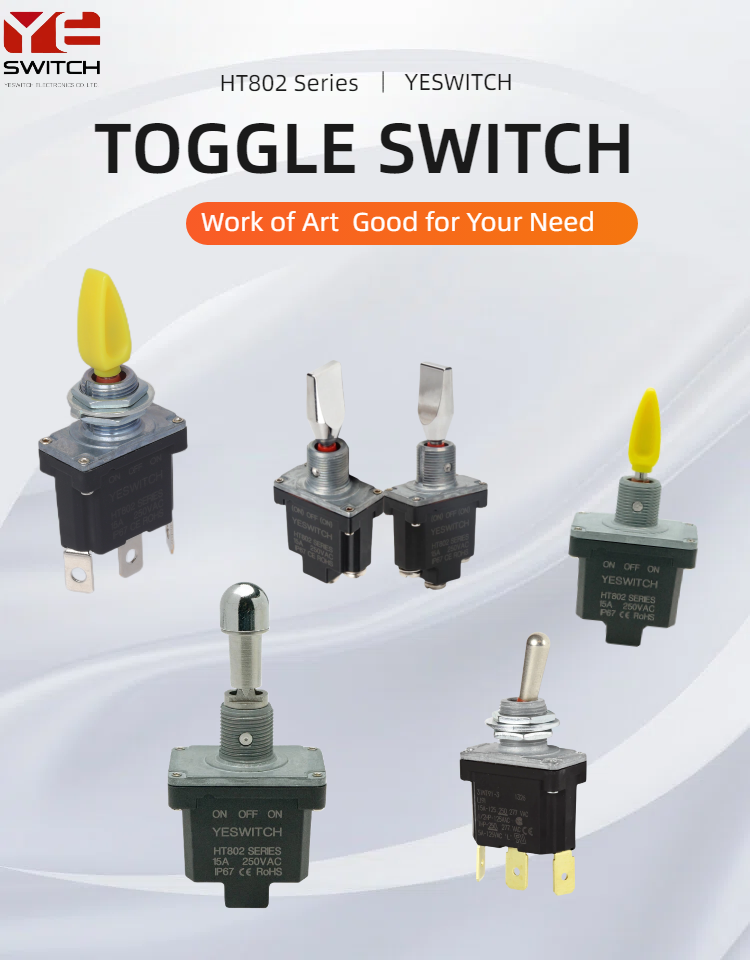

Today let’s take the YESWITCH HT802 Series Toggle switches, a reliable Waterproof Toggle Switch and classic Toggle Switch On Off, as an example to explain how to choose the right toggle switch for your needs.
1.Choose by Switch Function (deciding how you control the circuit)
- Locking Function: Stay in position after flipping (ON stay ON, OFF stay OFF). Suitable for long-term power on/off, fixed gear control, no need to hold all the time.
- Momentary Function: Spring rebound, automatically back to middle OFF after releasing hand. Suitable for jog control, temporary start/reset, manual inching operation.
2.Choose by Contact Terminal Type
- Screw Terminal: Direct wire crimping by screw, easy installation & maintenance, firm wiring, anti-vibration.Best for on-site wiring, engineering equipment, frequent replacement and maintenance.
- Soldering Terminal: Solder on PCB or circuit board, compact size, suitable for fixed circuit board assembly, mass production electronics.
- Quick Connect Terminal: Plug-in wiring, fast assembly, suitable for standardized production line installation.
- Rubber Terminal: Equipped with external wiring terminal originally. It can be installed directly and is ready for use.The wiring is neat and not prone to loosening.
3.Choose by Single Circuit / Dual Circuit & Gear
- Single Pole (SPST / SPDT) : Control only one independent circuit.Suitable for simple single power loop, single light/device switch.
- Double Pole (DPST / DPDT) : Control two circuits synchronously at the same time.Perfect for motor forward/reverse control, dual power switching, dual signal linkage control.
4.Choose by Handle Type
- Locking Handle : With lock structure, prevent accidental touch & misoperation, safe for industrial and public equipment. Can operate even with gloves.
- Long Handle: Easy to flip, suitable for equipment with deep panel or need blind operation.
- Nylon cover for metal handle: The handle is comfortable to hold. It is insulated to prevent electric shock and is resistant to oil and aging.
- Round Metal Handle:Sturdy and shock-resistant, strong industrial texture, clear gears without looseness.
- Flat Metal Handle: Large force-bearing surface, making it very easy to operate with gloves.
