Definition and Basic Structure

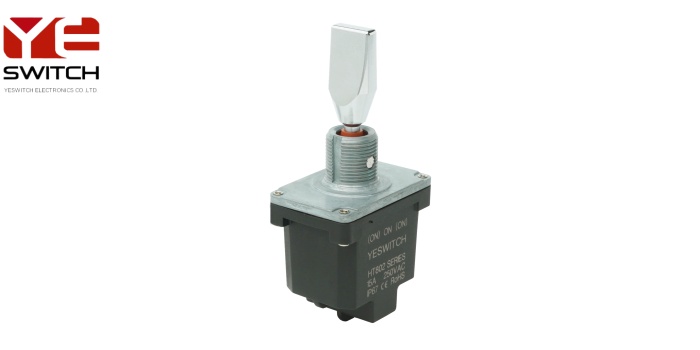

A high-current toggle switch is an electrical component that connects or disconnects a circuit by manually flipping a lever (button). Its core features include its ability to carry high currents of tens or even hundreds of amperes while maintaining high mechanical life and stability. Typical features include:
Lever: Made of metal or high-strength plastic, providing a clear tactile feedback.
Contact System: Made of silver alloy or silver-plated copper to reduce contact resistance and arc losses.
Casing: Made of flame-retardant engineering plastic or metal, providing insulation protection and mechanical support.
Terminals: Available in screw-type or quick-disconnect designs to ensure reliable high-current transmission.
Key Features
High Current Capacity: Rated currents typically range from 10A to 100A, with some industrial models exceeding 200A.
Arc-Resistant Design: Utilizes a snap-action mechanism for rapid opening and closing to minimize arc damage.
Environmental Adaptability: Waterproof (IP65 and above), dustproof, and high-temperature resistant (-40°C to 85°C) versions available.
Safety Certifications: CE, RoHS, and other standards are met, with some models meeting military-grade (MIL-SPEC) requirements.
Industrial Applications
Power Control: Used for power switching in distribution cabinets and generator sets.
Heavy Machinery: Motor start/stop control for excavators and cranes.
Rail Transit: On/off control of train lighting systems and auxiliary circuits.
Marine Equipment: Waterproof switches for deck lights and pumps.
Daily Uses
Household Appliances: Emergency power-off switches for high-power ovens and air conditioners.
Automotive Modifications: Add-on light bars for off-road vehicles, independent control of audio systems.
Solar Systems: DC-side switches for off-grid inverters.
Selection Guide
Current/Voltage: Select according to the load (e.g., 28V DC 50A or 250V AC 30A).
Pole Number: Single-pole (SPST), double-pole (DPDT), etc.
Protection level: IP67 or higher is required for outdoor use.
Additional features: Indicator light, key lock, and anti-touch cover.
High-current toggle switches, with their rugged design and reliable performance, are the ultimate safety guards in high-load scenarios. Whether for precise control of industrial equipment or emergency protection of household electricity, they silently shoulder the heavy responsibility of switching current and are an indispensable and practical component in modern electrical systems.
